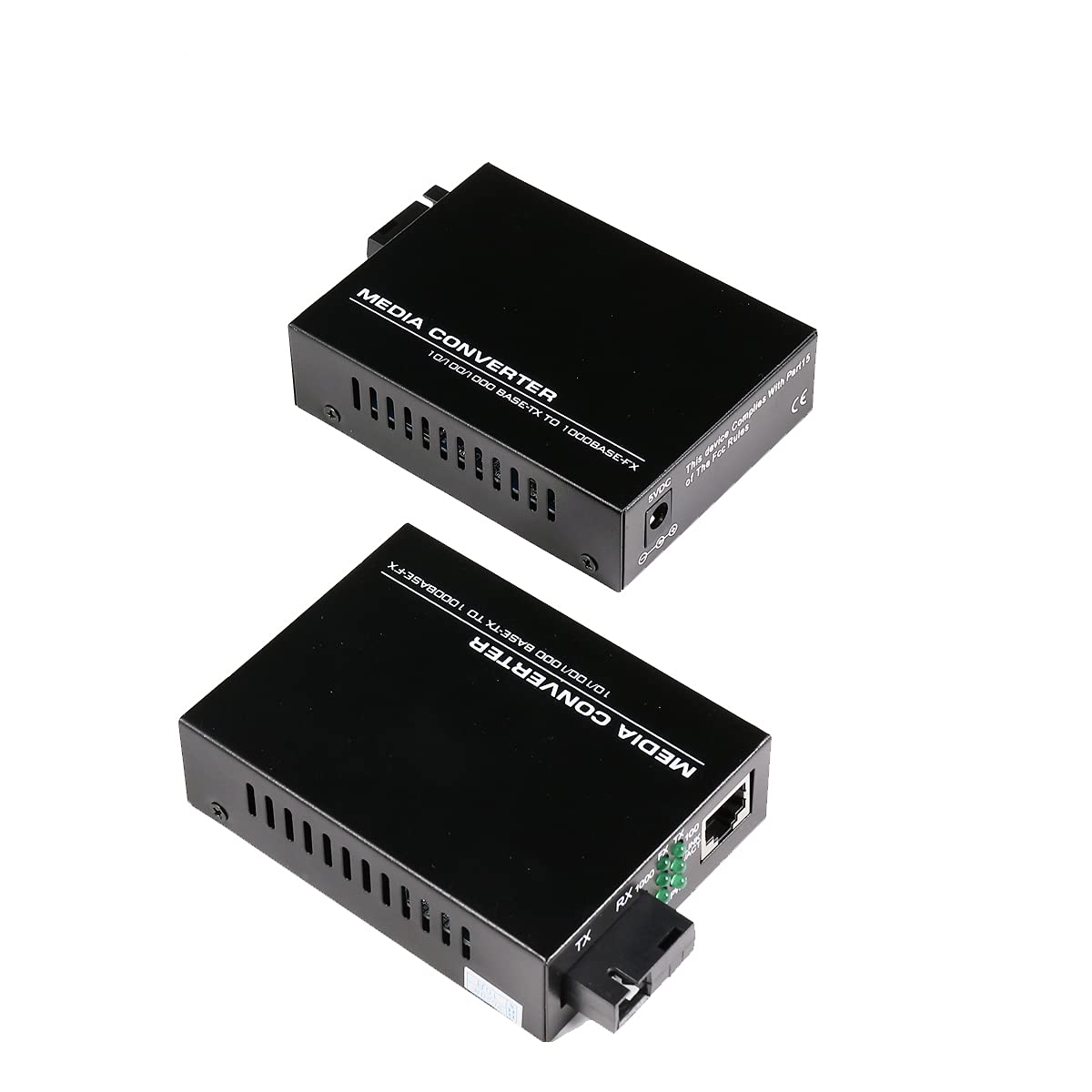

Fiber Converter works with the TFC-1600 chassis system or as a standalone unit. This converter is a Single Mode SC-Type fiber converter spanning distances up to 20km.Built-in high-quality advanced chip Bi-Di Single Mode SC Fiber transceivers Media Converters provide you a cost-effectivive, strong anti-interference ability and stable data transmission solution for network extensions.
Checklist contains
2 x Ethernet Media Converter Singlemode SC Connector
2 x AC/DC Power Adapter; Output voltage: AC 220V-DC5V 1A,Power dissipation:≤1 watts
1 x User’s Manual
Easy to Install & Compact Design
1.PLUG & PLAY in Single SC optical port and UTP port, and it will work right away. 0.3"x 0.2"x 0.1" which gives you flexible installation options.
2.Strong heat dissipation,Cooling holes are designed at both sides of the device to keep it heat dissipation and it can work for long time.
3.High-quality Metal Housing, Wall mountable, It’s made of metal case, sturdy and durable with long service life, suitable for working indoor and outdoor environment.
Wide Application
1.Applicable to a variety of work environments,such as community networks, campus and enterprise networks,FTTB/FTTH,intelligent broadband, security monitoring etc.
2.Compatible Various Network Protocol, In accordance with Ethernet standards IEEE 802.3/802.3u/802.3z/802.3ab 100Base-T and 100Base-FX.
Interface Specifications
1.Status LED indicators for Power, Link/Activity,Full-Duplex and speed; Fiber core: 8.3um, 8.7um, 9um and 10um on single mode fiber; Optical Power (dBm): -15~-3, Receiving Sensitivity (dBm): ≤-32.
2.Ethernet port (RJ45) 10/100Base-Tx, 2 x Optical port (Dual SC) 100Base-Fx,Available speed: auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation.
3.Optical Port 1x1000Mbps fiber port with single-mode SC-type connector 1310nm, RJ-45 connector,MDI/MDI-X connection auto-sensing.
