Features
Input: 100-240V AC 50/60Hz
Output : 24V 6A
Dimensions:120(L)*50(W)*30(H)mm
Cable length: 0.9m
Power Cord is included: 0.9m
Protection: Short circuit protection, overheating protection, overvoltage protection
Safety instructions: FCC / CE
Package include

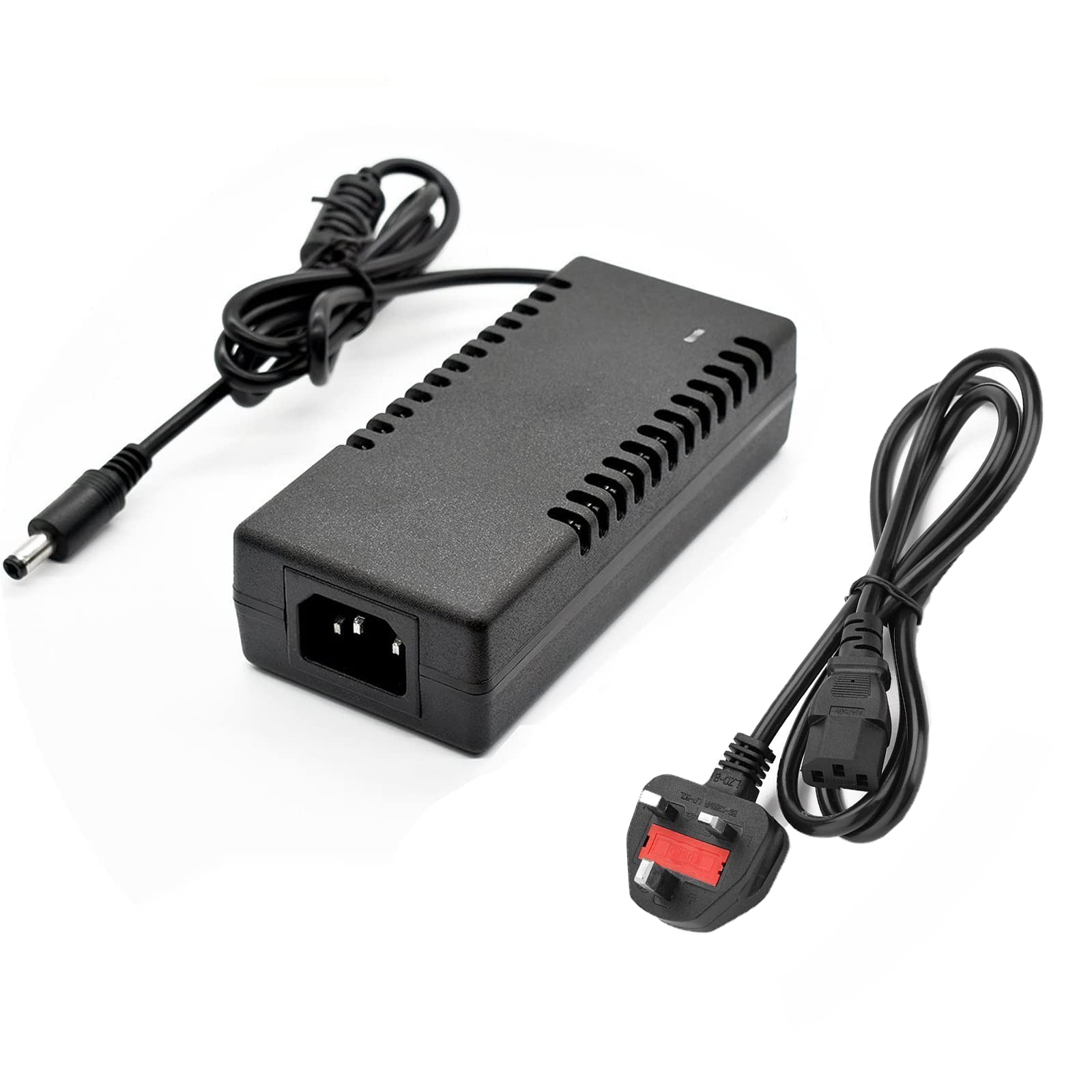

1 X 24V 6A AC Power Adapter
1 X Power Cord
Wide application
Most used for 24V LED strip: 5050 SMD, 3528 SMD, 5 meters, 10 meters, waterproof strip, non water proof rope light, RGB cool white and warm white strip light.
And 0ther usage, Wireless Router, ADSL Cats, HUB, Switches, Security Cameras, Computers, Audio/Video Power Supply etc
❤1. Check Voltage
Please find the spec label of your device and check the working voltage. It should be 24V DC, not be AC 24V or lower/higher than 24V DC. Otherwise, your device will not work or be damaged. ❤2. Check Current
Check the max current your device will draw. It should be equal to or less than 6A,such as 0.5A,1A,1.5A,2A,3A ,4A,5A,6AOtherwise, your device won’t work well and the power supply will be damaged very soon. ❤3. Check Port
Check the power input port of your device. Its outer diameter should be 5.5mm; inner core diameter should be 2.5mm or 2.1mm. Inner core polarity should be"+", exterior polarity should be" - ". ❤4. Refer to original PS
If you have an original power supply for reference, their output voltage, plug size, polarity should be the same .If our PS’s current is equal to or higher than original one’s, then our PS will work with your device.
