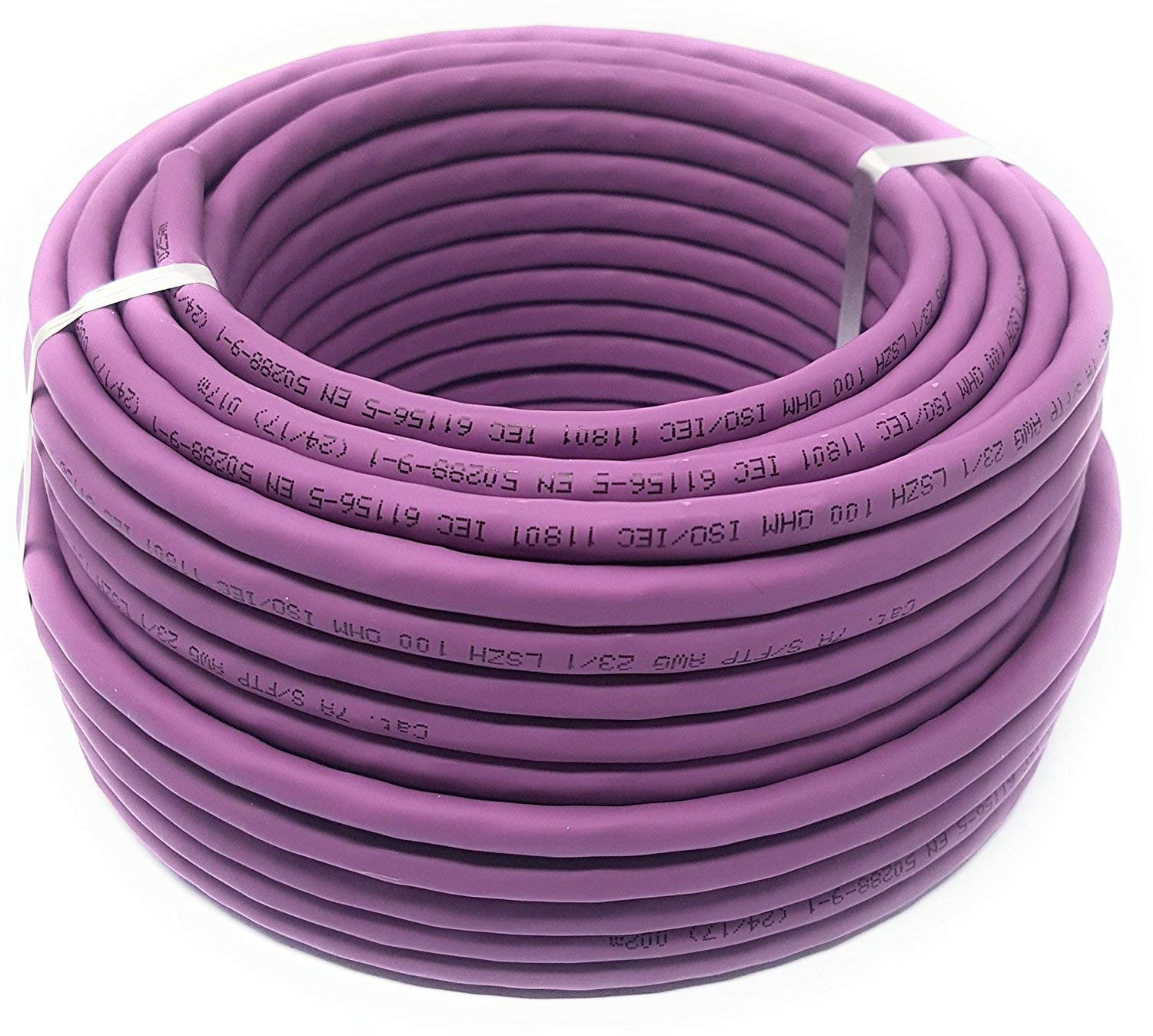

High quality Cat.7A - Ethernet cable. Copper 4 x 2 x AWG23/1 Meets vibration absorbing values according to Class Specification FA (Cat7 A) to 1200 MHz. Single Shielding, the conductor pairs (PIMF) Plastic Composite Aluminum Film Hard Overall shielding Tinned Copper Braid. Halogen free On Spool with metal core Metre marking Length: 50 m ( Metres ) Colour: Purple (RAL 2003) Areas of Use: Suitable for applications up to class F, Power Over Ethernet (PoE)/PoE +, transmission of digital and analogue signals, video, data, speech, VoIP (voice over IP). IEEE 802.3. 10BASE-T, 100BASE-T, 1000BASE-T and 10GBASE-T Gelt the following standards: - International Standards: ISO/IEC 11801 2nd Ed. IEC 61156 5 - European standards EN 50173 1 & en/4/1 Flame Widrigkeit: Flame-retardant, IEC 60332 1-2 Halogen free IEC 60754 to 1/2 - Smoke Density IEC 61034 1/2 Electrical properties (LF) at 20 °C - Resistance: Max. 72 Ohm/Km - Widerstandsunsymmetrie: Max 2% - Insulation resistance min 2 g Ohm x KM Capacity: Nom 42 PF/km - Kapazitätsunsymmetrie: Max. 1500 PF/km Offers Wave resistance:: 100 MHz 100 ± 5? Connector resistance: @ 1/10/30MHz 5/5/10 MOhm/m (grade 1) Heat Loss: Min) and A4-80. 85 dB (Type 1) Relative velocity of propagation: approx. 79% Receiver Running Time: Nom 420 NS/100 m Life difference: Nom. 5ns/25 m Test voltage: 1000 V - Working Power: Max. 125 V Mechanical features: - Bend Radius: + with tensile load: Min 8 x D + without tensile load: Min 4x D - Tensile strength Max. 110 N (SX), 220 N (DX) - Pressure resistance: Min 1000 N/10 cm - Operating Temperature Range: + moves 0 °C to + 50 °C + ruhend -20 °C to + 60 °C Box Contents: 50 m Cat.7A Installation Cable 1200MHz
