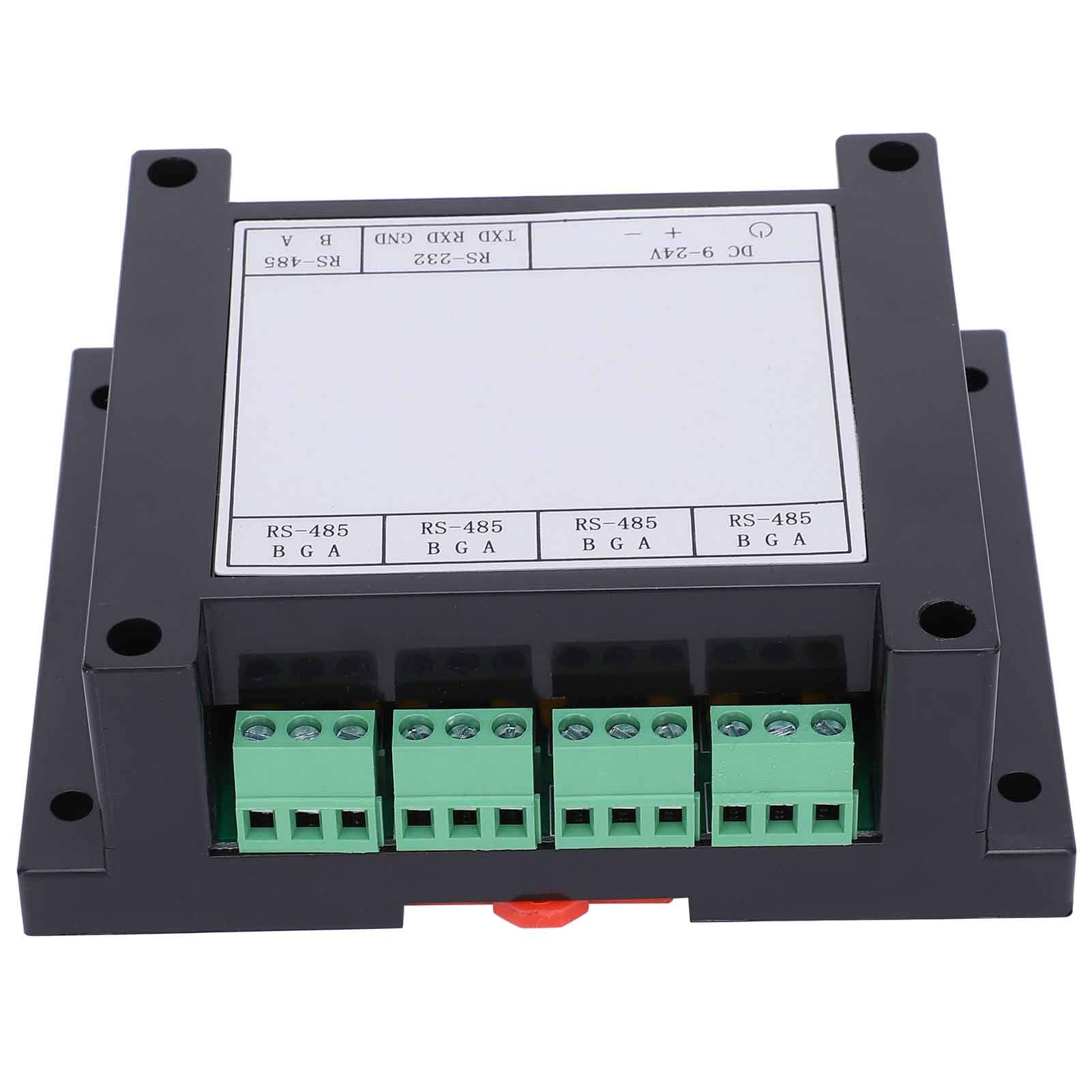

Fdit RS485 Repeater, 4-Channel Photoelectric Isolated Module Hub, 9-24V Industrial Grade Optocoupler Isolated Board, 115.2Kbps Transmission Rate

Specification:
Item Type: Repeater
Compatibility: Compatible with RS-232, RS-485TIA/EIA standards
Working Voltage: DC: 9-24V
Rated Power: 0.5-1.2W
Input Interface: 1 RS-232/1 RS-485
Output Interface: 4 RS-485
Load Capacity: 128 nodes per interface
Communication Distance: 2500 meters shielded wire or twisted pair wire per interface
Communication Rate: 300bps-115.2Kbps
Installation Method: 35mm rail installation, 4-hole installation on the back plate
Structure Size: Approx. 115 x 90 x 40mm / 4.5 x 3.5 x 1.6in
Working Environment: -30℃ to 70℃ relative humidity>95%RH

Package List: 1 x Repeater

Note: The device is suitable for long‑term stable under the recommended value; the device will not be damaged when working under the limit value, but may cause performance degradation; do not exceed the limit value range at any time, otherwise it may cause damage to the device!
