【24V 16.7A Output】It can be supplied with current less than 16.7A, such as 2A, 3A, 5A, 8A, 10A, 15A. For example, if your device uses 16A, 16A will be supplied.

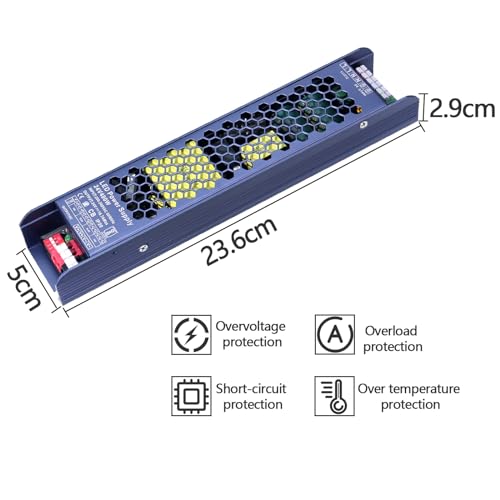

【Compact Design】The size of the power supply is 23.6cm x 5cm x 2.9cm, the power supply is thinner and narrower, which is easy to use in hidden narrow spaces and is more conducive to space division.
【Quadruple protection】Power supply transformer provides overload protection, over-voltage protection, over-current protection and short circuit protection. Excellent drive with built-in safety protection device to ensure safety and stability.
【Adjustable Voltage】According to the instructions on the power supply, the voltage can be adjusted to 16V, 18.5V, 20.5V, 24V.(Note: Some of the LED strips sold on the market can be dimmed by adjusting the voltage; some LED strips reduce the voltage, the LED strip will not light up.)
【Application】Power supply transformer is suitable for LED light strips. It is also suitable for security surveillance, routers, screens and audio devices with the same current and voltage.

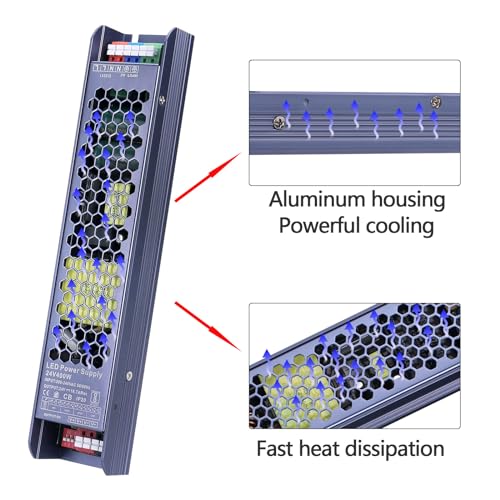

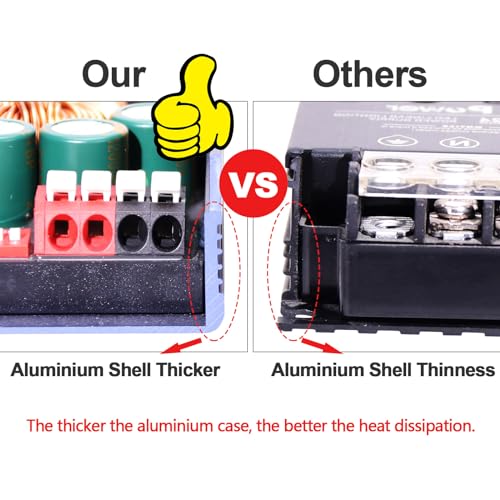

【Notice】Due to the heat inside the power supply being exported to the aluminum shell, the temperature of the aluminum shell can reach approximately 60°C during power operation.
Product Description
Parameter:
Entrance: AC200V ~ 240V, 50/60 Hz
Output voltage: DC 24V
Output current: Max 16.7A
Output power: Max. 400W
Size: 23.6cm x 5cm x 2.9cm
Storage temperature: -20 ~ 60 ℃
Ambient humidity: 0 ~ 95% Non-condensation
Shell Material: Metal housing / Black aluminum base
Safety compliance: CE / RoHS
Working temperature: -10°C to 60°C
Weight: 440g
Package included:
1x 24V 16.7A power adapter (power cord is not included)

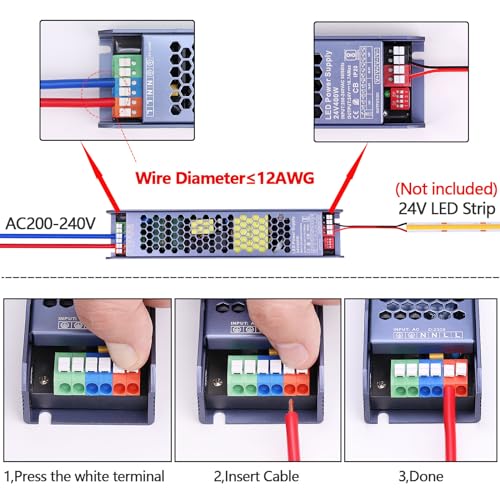

Connection instruction:
L: AC Live Wire
N: AC neutral conductor
〨:Grounding
+ V: DC 24V +
COM: DC 24V-
Please note:
1.It comes without installation instructions, power cord, on/off switch and screws. Professional installation by a licensed electrician is highly recommended.
2.High voltage inside, NEVER remove the cover. Not waterproof, for indoor use only.
3. Make sure your device complies with 24V voltage and power less than 400W. Please do not overload it.
4.If there are any problems with the power supply, please feel free to contact us by email. We will solve the problems for you within 24 hours.
Professional advice from a licensed electrician:
1. Maximum usage should be no more than 80% of full loads.
2. Otherwise, the lifespan of the power supply will be significantly shortened.
3. We recommend you use this 24V 16.7A 400W power adapter to power devices less than 320W.
