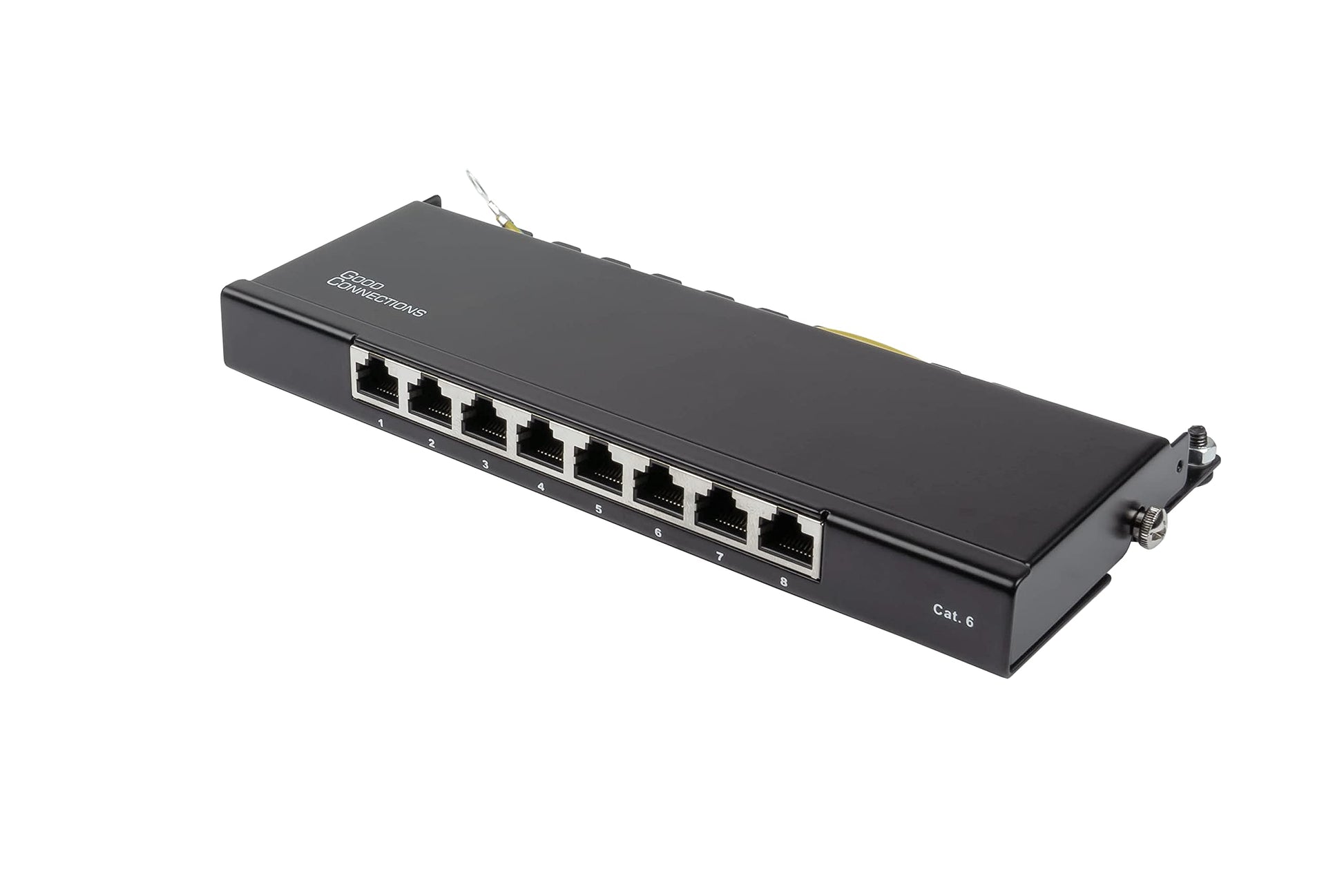

Patch panel desktop cat. 6, 8-Port, 0.5U, STP Shielded, Tool-free Open, Jet Black (RAL9005), Good Connections
The fully shielded Cat. 6 patch panel from Good Connections is made of sturdy 1.5 mm sheet steel and suitable for Ethernet networks up to 1 Gigabit/s. On the front, different network devices can be connected using RJ45 patch cables. On the back, the solid or stranded cables are connected via LSA strips.
Tool-free opening and closing.
The case cover is attached with two screws. These can be loosened or tightened either with a screwdriver or by hand.
Technical specification:
- Cat. 6 according to ANSI/TIA/EIA 568 C.2 standard.
- Desktop version with 8 ports.
- Suitable for 1 Gigabit/s Ethernet and for transmission frequencies up to 250 MHz
- Complete shielding of RJ45 sockets and LSA strips.
- Terminal strips with colour coding in accordance with TIA 568 A/B
- Cable installation via LSA strips.
- For solid and stranded cables with cable diameters of 22-26 AWG
- Cable attachment with strain relief.
- Housing made of 1.5 mm sheet steel.
- Fixing option for cable ties.
- Central earth connection.
- 0.5 height units [U]
- Operating temperature range: -20°C to +60°C
Colour: jet black (RAL9005).
Dimensions (WxDxH): 212 x 100 x 22 mm
Package includes:
- 1 x patch panel including earth cable.
- 1 x illustrated instructions (English language not ).
- 4 x cable ties
