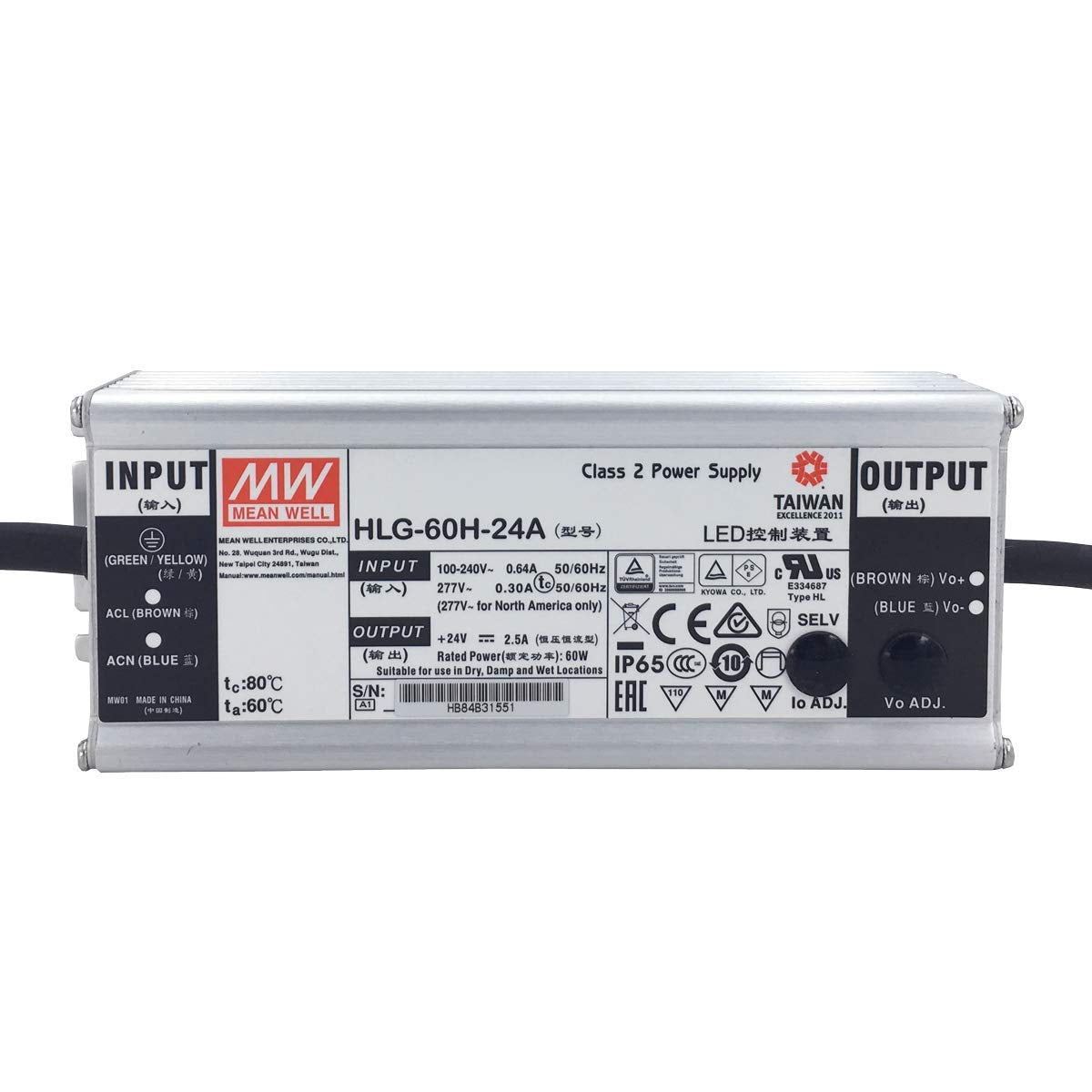

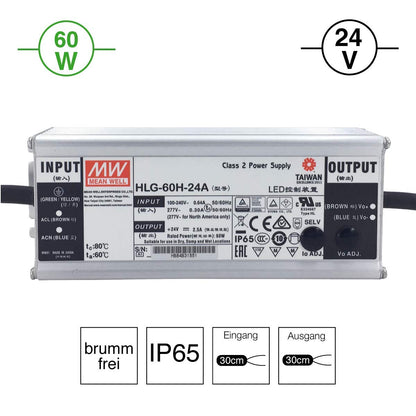

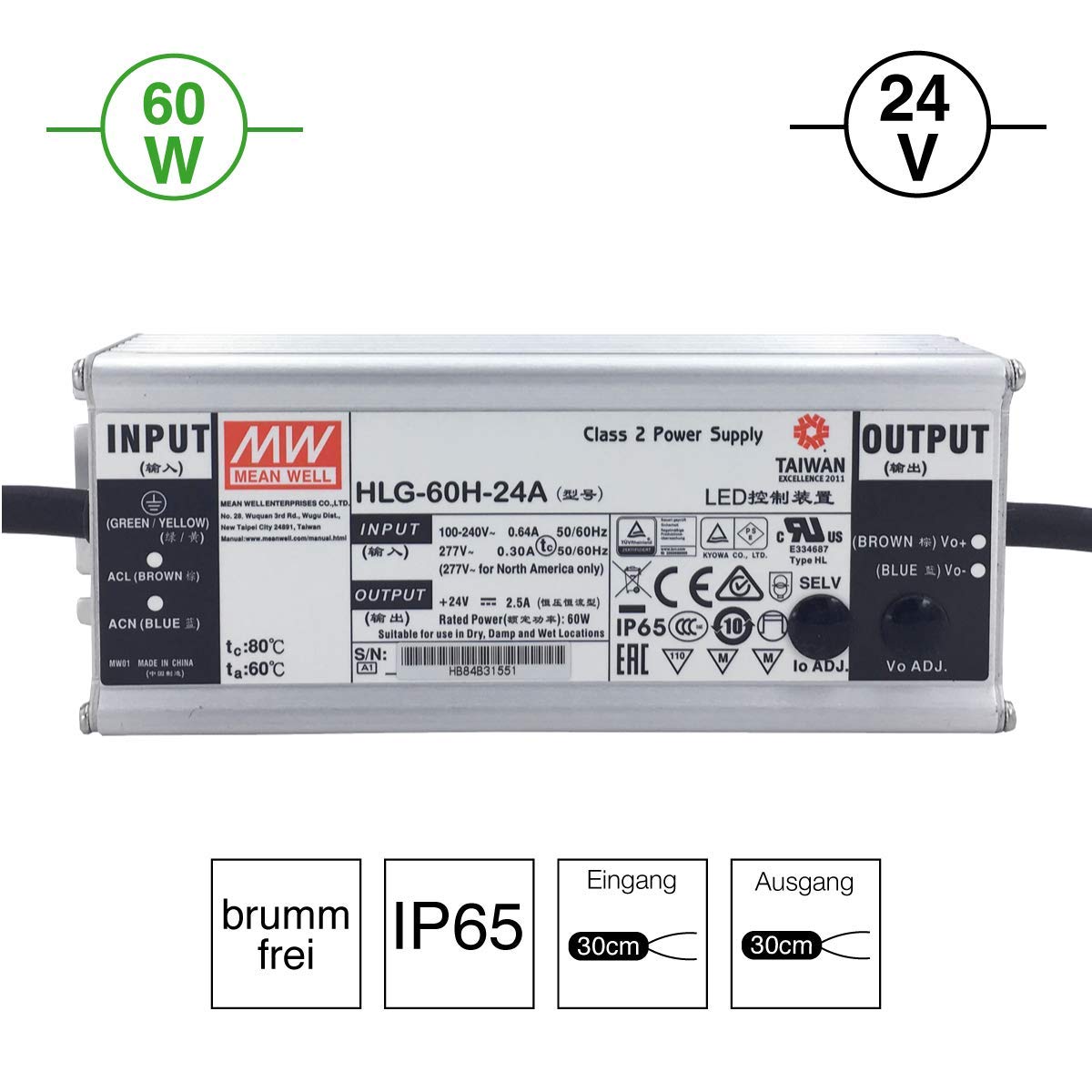

High quality: efficient and durable LED power supply from MeanWell made of aluminium with 24 V/60 W (constant voltage). Three approx. 30 cm long connection cable without plug are firmly mounted.
Adjustable: thanks to the built-in regulator, voltage or constant current can be individually adjusted. For example, this makes sense to compensate for a loss of voltage due to long cable paths.
Protection functions: with protection functions against overload, too high input voltage, overtemperature and short circuit. Ideal for LED installations such as LED strips with 24 V and LED recessed spotlights (LED spots) with 24 V.
Waterproof: splash-proof IP65.
INCONNECTED LIGHT CONSUMPTION: Are you planning a light installation Please contact us and take our advice offer by email or phone (0049 2835 782 37 - 00, Mon-Fri 9 - 5 pm) Please feel free to send us sketches or floor plan of your planning.
Product Description
Technical data:
Below are the most important technical data, more information about this Mean Well power supply is available on our iluminize website.
Dimensions:
Length: 171 mm.
Width: 61.5 mm.
Height: 37 mm.
Weight: 0.73 kg
Performance data:
Input voltage: 176V-264V AC.
Inrush current: 30 A / 230 V.
Power: 60 W.
Voltage: 24 V.
Maximum current: 2.5 A.
Efficiency: 89.5%
Residual ripple: 150mV
Voltage stability: ±0.5%.
Load stability: ±0.5%.
Insulation voltage: 1.5 kV AC.
Insulation resistance: 500 V DC / 100 MΩ.
Overload: 105% ~ 150% (auto reset)
Over voltage: 121%~142%.
Short circuit: auto reset.
Humidity: 10% to 95%.
Working temperature: -10°C to 50°C.
The connection cables are 30 cm long.
