Dimming range: 0~100%, LED start at 0.1% possible.
Input: AC 200-240V 50/60 Hz; output: 24V DC, output current: Max 6.25A
Full protective plastic housing. Compliant with Safety Extra Low Voltage standard. Suitable for internal lights application.
Over load / Over-heat / Short circuit protection, recover automatically. Class 2 power supply.
Product Description
Dimmable LED Intelligent Driver made especially for powering LED lights, this high-quality power supply will convert household AC current to 24V DC. Perfect for any LED installation that draws up to 6.25A of current, including LED light strips, G4 LED bulbs, MR11 LED bulbs, MR16 LED bulbs, or your own custom-built project with multiple LEDs wired in series.
Electrical connections are easy and safe with this power supply. Input and output are clearly marked, and the terminals are fully covered and insulated by the orange end-caps for safety. No soldering, wire nuts, or exposed connectors. Over-heat protection: intelligently adjusting or turning off the output current if the PCB temperature ≥110°C, and the output current will be restored automatically when the temperature comes normal. Over-load protection: power limit when rated power≥102%, auto recovers when the load is reduced. Short circuit protection: shut down automatically if short circuit occurs, auto recovers after faulty condition is removed.
features:
-Dimming Interface: DALI-2 DT6/DT8
- Input Voltage: AC200-240V / 50-60Hz
- Output: DC24V 6.25A ,Constant Voltage
- Output Power Range: 0-150W
- Dimming range: 0-100%, dimming depth: Max. 0.1%
- PWM Frequency: 3600Hz
-Working temperature: ta: -20-50°C tc: 85°C
Package Included:

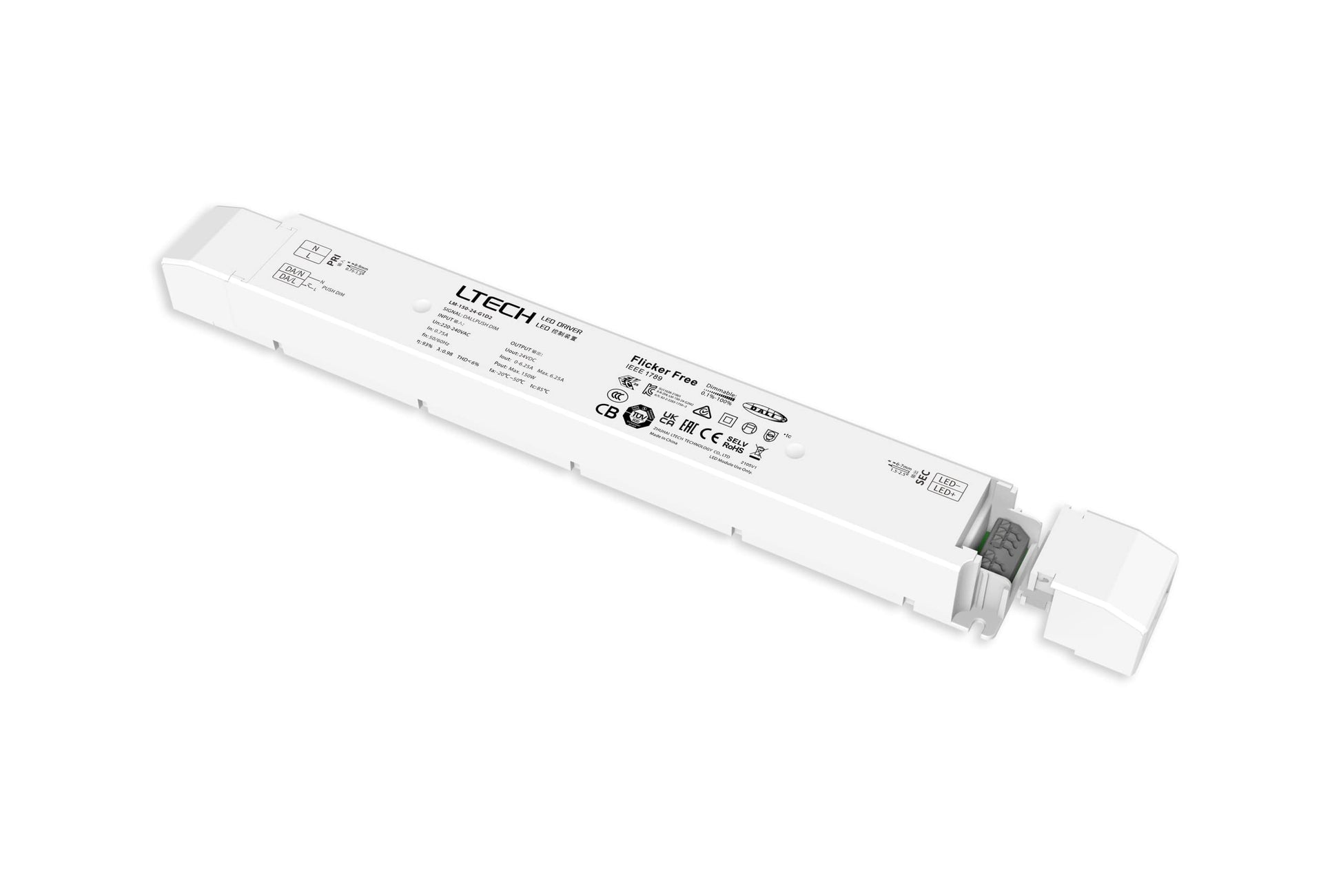

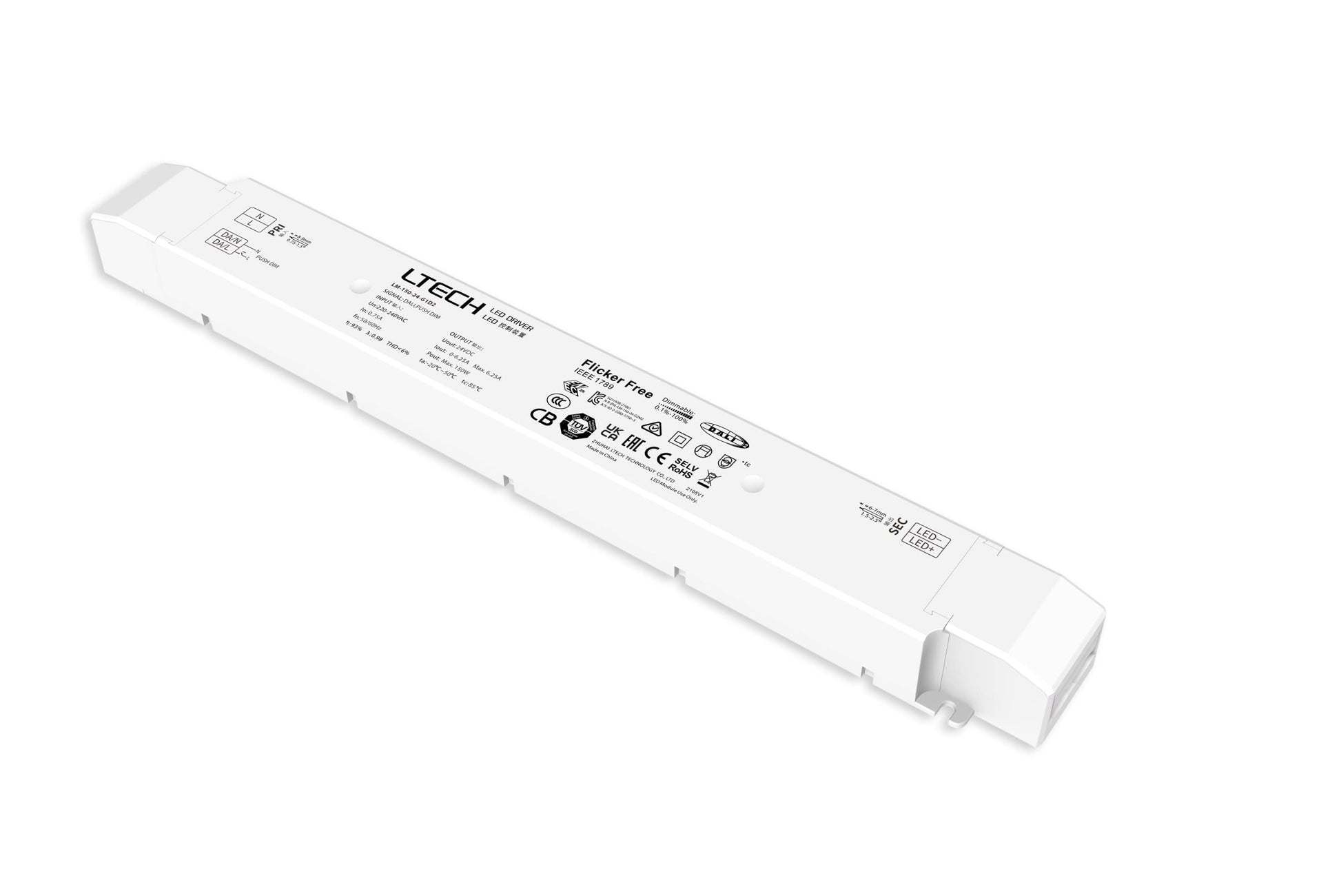

1 * LIGHTEU LED Power Supply Driver Transformer
