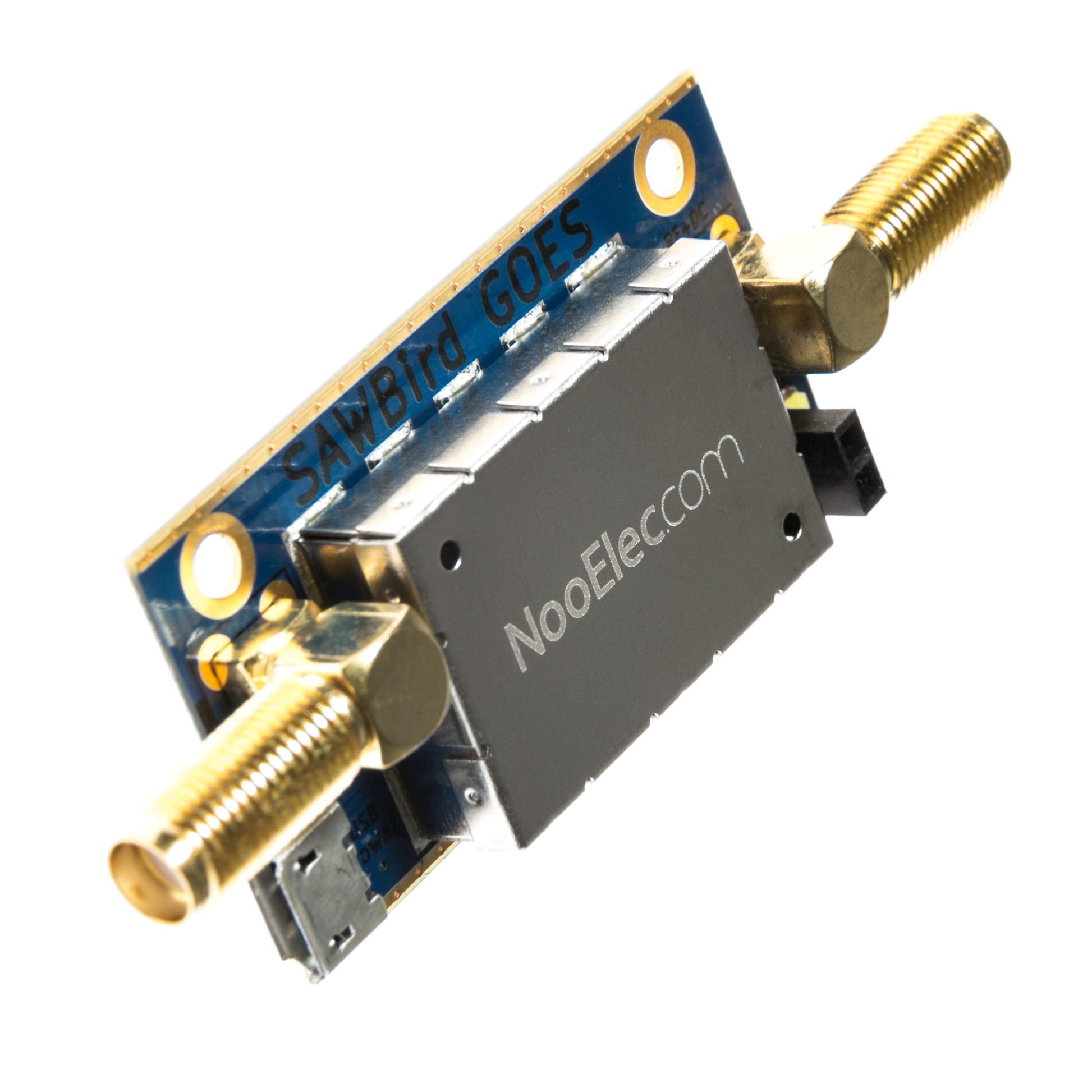

SAWbird GOES is a self-contained LNA module designed for capturing beautiful weather images available from NOAA GOES satellites. It has very high attenuation outside of the 80MHz bandpass region, centered around 1.688GHz, and a minimum of 20dB of gain within the bandpass region. Nominal current draw is only 30mA.
The SAWbird series contains 2 ultra-low-noise LNAs (single package), sandwiched around a custom-designed, high-performance SAW filter centered at the frequency of interest.
Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options through the microUSB port or the power input header. The recommended external power input is 3.3V-5.5V DC.
As the frequency of this device borders on the maximum frequency capability of R820T-based SDRs, we recommend using it in conjunction with the NESDR SMArTee XTR v2, which contains a bias-tee capable of powering the SAWbird GOES module with bias power. It also utilizes a different tuner IC than other low-cost SDRs, which means it is capable of frequencies well in excess of 2GHz. A good alternative would be the HackRF--though it is sold at a much higher price point, it also has a great deal of other useful features, like transmit capability, and is capable of operation up to 6GHz.
Though this module will be sufficient to greatly improve your reception, you may want to instead consider SAWbird+ GOES if you are using NESDR SMArTee XTR, or if your SDR can provide sufficient current (~180mA), or you are willing to power with the external power options. SAWbird+ GOES has a higher gain and a slightly lower noise figure.
