Material: It is made of high-quality stainless steel material by welding and firing, and the rod is made of solid bar material, which has strong bearing capacity, waterproof and rust-proof;
Specifications: Pipe hole diameter 25mm, rod diameter 10mm, total length 350mm, mounting seat length: 80mm, width 45mm; suitable for pipe rods with an outer diameter of 1 inch or 25mm;

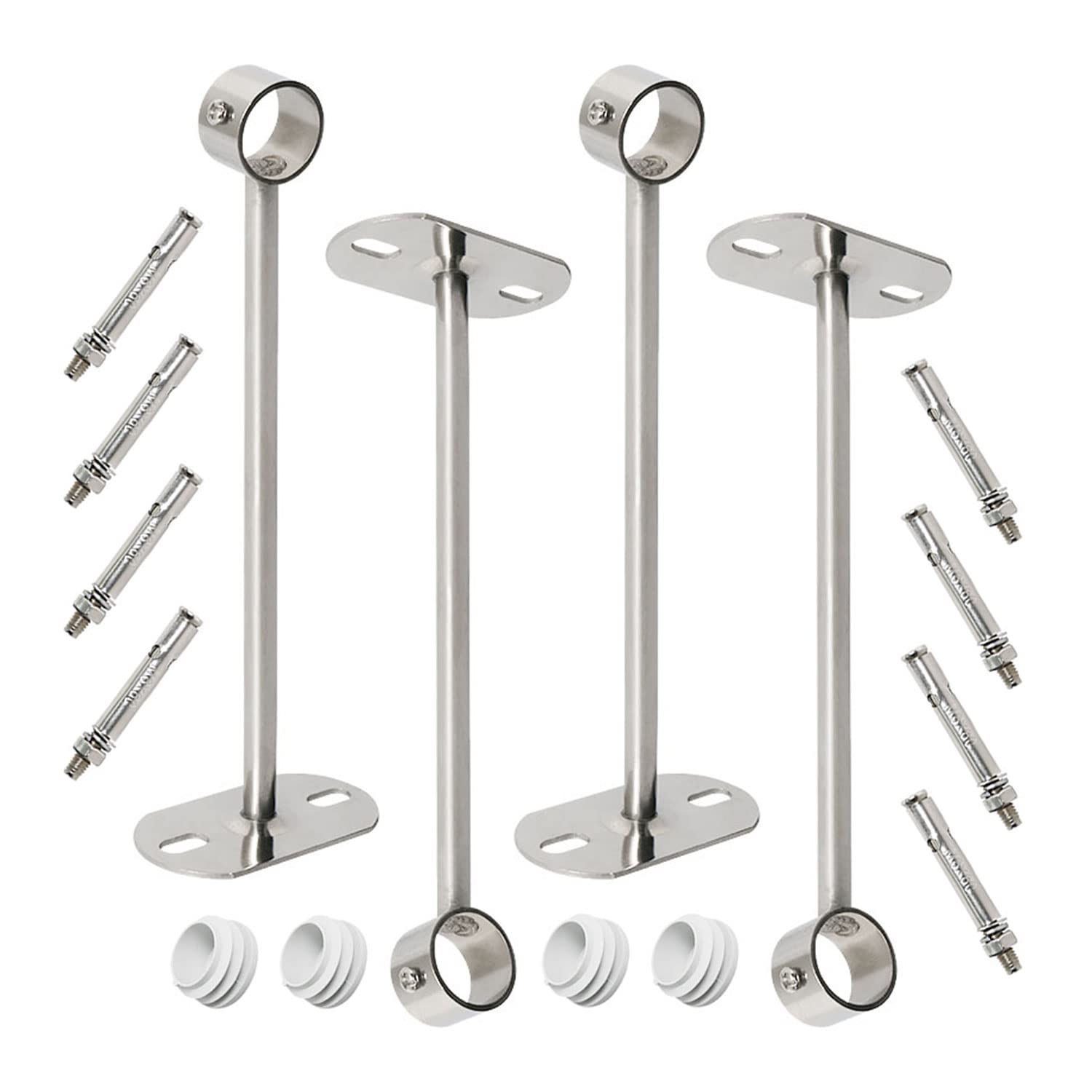

Packing: 4 rod holders, 4 plastic rod caps, 8 expansion bolts;
Performance: Thicken raw materials, load-bearing test>50KG, expansion screw installation is stable and durable;
Application: Suitable for the installation of shower rods/curtain rods/clothes support brackets/hanging rods in the bathroom, kitchen, living room, balcony or outdoor
Product Description
Material: Stainless Steel
Specification: 25*350mm
Color: Silver
Expansion Screw: M6
Installation tips: first mark the position of the screw hole with a marker, drill the bottom hole of the screw (the diameter of the bottom hole of the expansion screw needs to be 8mm), insert the expansion bolt, turn the nut to lock the bracket;
secondly, insert the pipe rod to be supported into a rod bracket , Then insert it into another bracket, adjust the position, and tighten the positioning screws on the side of the mounting bracket;
finally, install protective plastic rod covers on both ends of the pipe rod to complete the installation.
It can be installed vertically or horizontally on the ceiling, wall or cabinet, as a support frame for clothes rails, shower curtain wardrobe rods, curtain rods, handrail rods, etc., to meet our daily indoor or outdoor needs.
